PWD MODULE
Downhole mud pressure is one of the most important pieces of information a driller can utilize to gain a sense of what is happening while drilling. The PWD Module measure the Annular (APWD) , Internal pipe pressure (IPWD), as well as the temperature (ATMP) during no flow, drilling, wiping or tripping out of the hale. lt allows the driller to “see and feel” the dynamic behavior of the drilling fluid. With this crucial information, the driller can make better decisions in real-time to improve drilling efficiency. Rig safety is also improved by helping to avoid potentially dangerous well control problems.
FEATURES AND BENEFITS
- Retrievable configuration
- Available with Mud Pulse & EM MWD
- Static pressure reading during pump off
- Wide pressure range
- Real-time or memory output
- High accuracy and reliability
APPLICATIONS
- Excellent performance on horizontal wells applications
- Extended reach lateral sections
- Underbalance drilling
- High Temperatura High Pressure Wells (HPHT)
- Monitoring hale cleaning
- Reservoir pressure management
- Real-time ECO measurements

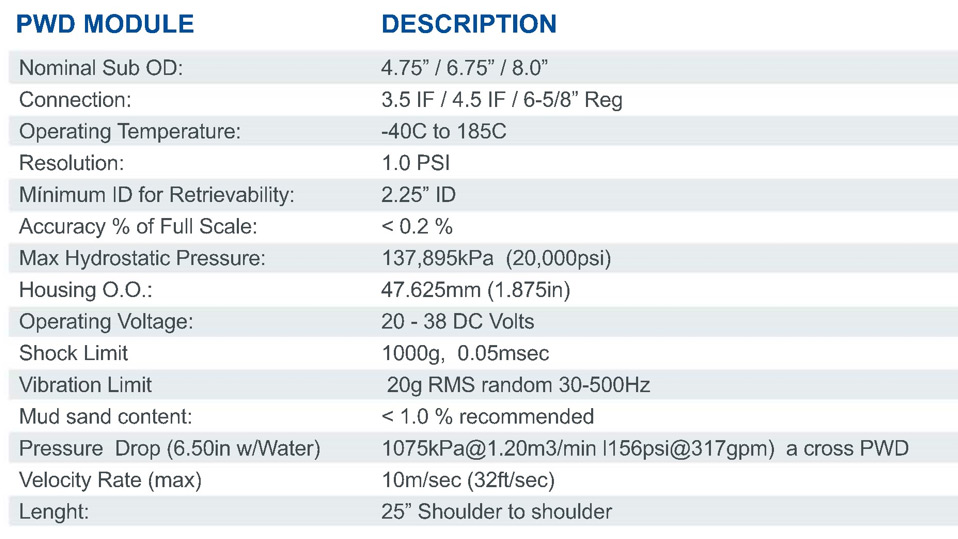

TECHNICAL SHEET
